SKU:O2-A2

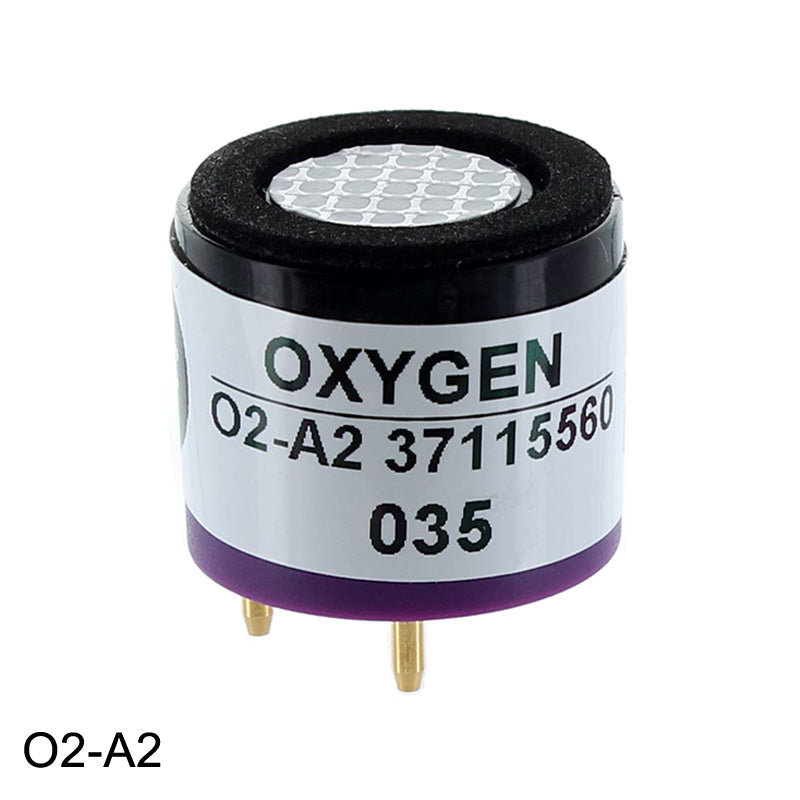

O2-A2 Alphasense 25% 2 Year Oxygen Smart EC Sensor
$70.00 USD
$70.00 USD
Sale
Sold out
Couldn't load pickup availability
The O2-A2 Alphasense Oxygen Sensor is designed to monitor 25% oxygen levels by volume. The sensor is most sought after as a replacement sensor for handheld gas detectors that use the O2-A2 sensor.
Features
- Electrochemical Sensor measures up to 25% Oxygen
- Barometric Pressure, Temperature and % Relative Humidity Sensors
- Smart EC board Adds RS485 with Optional RS485 Cable
- Easy Integration; Compact & Low Power
Models
- O2-A2 Sensor Only – Sensor only. Designed for integration into high-volume OEM products or as a replacement oxygen sensor in these 4 gas analyzers:
Can be used as replacement sensors for:
- BW Technologies GasAlert MicroClip XT
- BW Technologies GasAlert Max XT-II
- BW Technologies GasAlert Micro 5 PID
- BW Technologies GasAlert Quattro
- BW Technologies GasAlert Extreme GAXT-DL-2
- BW Technologies GasAlert Extreme GAXT-DL-B-2
- BW Equivalent part no. SR-X10-C1
- MSA Solaris Orion Altair 4,5 (not 4X or 5X)
- Fieldpiece SOX3
- CityTech 4OX-2
Specifications
- Measurement Range: 0-20.9% oxygen
- Output: 80-120 uA @ 20.9% O2
- Response Time: < 15 sec. t90 (s) from 20.9% to 0% O2
- Linearity: 0.6% O2 deviation @ 10% O2
- Output drift: < 1% change @ 3 months
- Operating life: > 24 months until 85% original Output of 20.9% O2
- Analog Output: 0-3VDC
Electrical/Mechanical
- Dimensions (sensor): 17.4mm x 20.3mm
- Dimensions (sensor + PCB): 40mm X 25mm x 29mm (LxWxH)
- Power Input: 3.3-5.5 VDC
- Current Consumption: 10ma peak, < 3mW average
Warranty
- 90 days - See CO2Meter Terms and Conditions
Documents
Free Easy-to-use GasLab® Software
The Smart EC board uses GasLab® software for setup, calibration, data logging, and real-time data analysis. GasLab® makes it easy to export data into a .CSV file that can be imported into any industry-standard software or spreadsheet. GasLab® runs on Windows XP or higher, and free to use with our products.
System Requirements
- Windows XP SP2 or newer
- Microsoft .Net 3.5 Runtime Libraries
Accessories
- Tube Cap Adapters easily convert 20mm standard gas sensors from diffusion to sampling sensors. Molded polymer. Tube cap adapters are not pre-installed. For accurate results you must mount the tube cap permanently.
- RS485 Cable. Custom USB cable enables RS485 communication to GasLab Software for EC Sensor Board and Development Kit.
- Micro-Pump Kit includes all the tools you need to utilize the tube-cap adapters as part of a sampling sensor system.
- Nafion Tubing is a highly selective, semi-permeable membrane to water vapor. If gases inside Nafion tubing are wetter than gases surrounding the tubing, drying will occur. If the surrounding gases are wetter, humidification will occur.
-
Micro Gas Sampling Pumps provide a constant flow of air across the sensor with a tube cap - perfect for bench-top testing of sensors for closed-loop sampling applications.
-
